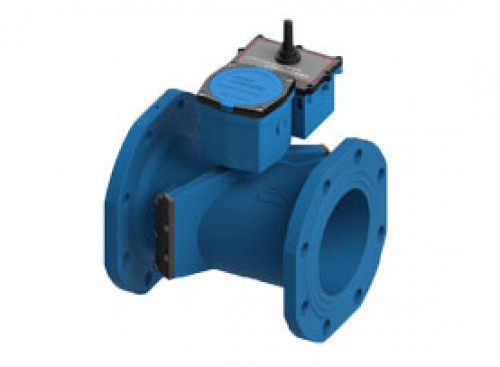

มาตรวัดน้ำ Dual Channel Ultrasonic Water Meter

มาตรวัดน้ำ Dual Channel Ultrasonic Water Meter
มาตรวัดน้ำ Dual Channel Ultrasonic Water Meterมาตรวัดน้ำ Dual Channel Ultrasonic Water Meterมาตรวัดน้ำ Dual Channel Ultrasonic Water Meterมาตรวัดน้ำ Dual Channel Ultrasonic Water Meter
รหัสสินค้า SKU-00031
หมวดหมู่ เครื่องวัดอัตราการไหลของของเหลว Ultrasonic Flowmeter
ราคา 0.00 บาท
สถานะสินค้า พร้อมส่ง
ลงสินค้า 20 ก.ค. 2565
อัพเดทล่าสุด 20 ก.ค. 2565
คงเหลือ ไม่จำกัด
จำนวน
ชิ้น
หยิบลงตะกร้า
บัตรประชาชน
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
Double beam ultrasonic sensors for high accuracy and reliable operation;IP68 protection, ensure long-term operation though water in the inside meter; Built-in Lithium battery for 6 years life.

General Introduction:

Double beam ultrasonic sensors for high accuracy and reliable operation;IP68 protection, ensure long-term operation though water in the inside meter; Built-in Lithium battery for 6 years life expectancy.

Features:
• Initiating flow lower to millimeter grade
• Multi line 9 digital LCD display accumulative flow and 4 digital for instantaneous flow
• High reliability design, no moving part
• Two channel isolated pulse output, pulse equivalent and output pulse can be arbitrary customed.
• Two-wired system 4-20mA output optional
• Built-in Lithium battery for 6 years life expectancy
• It can automatic power saving under empty pipe or the liquid static for a long time
• Resin vacuum sealed IP68 for long life and high expectancy
• Chronological cumulative record
• Standard RS485 interface
• Infrared communication interface, support CJ-188 communication
• Support MODBUS,M-BUS communication protocol
• TTL levels pulse output and USART interface, convenient to connect the low power consumption equipment
• With the two channel PT1000 temperature transducer, which can realize the heat measurement


Item

Specification

Measurement Liquid

Water, Sewage, Seawater(Other liquid need to customized),liquid should be full of the pipeline

Medium Temperature

0.1-30℃

Working Environment

Temperature:-10~45℃;Humidity≤100%(RH)

Working Pressure

1.6MPa(2.5MPa optional)

The sensitivity of upstream

U3

The sensitivity of downstream

D0

Climatic and mechanical

C class

Electromagnetic compatibility class

E2 class

Communication Interface

RS485/USART/Infrared

Output Signal

Two way OCT pulse output/TTL pulse output/One way4-20mA output

Power Supply

Built-in Lithium battery(3.6,19AhV)/DC8-36V power supply

Protection Class

IP68,can work 2 meters under water

Digital Display

Multi line 9 digital accumulative flow,4 digital display for instantaneous flow, varies of state prompt and units

Data Storage

EEPROM/FLASH, automatically record the accumulative flow of last 512 days

Measurement Cycle

Measuring:1 times/second;Verification:4 times/second

Power Consumption

<2.7AH/Year,6 years battery life
