รหัสสินค้า | SKU-00041 |
หมวดหมู่ | เครื่องวัดอัตราการไหลของของเหลว Electromagnetic Flowmeter |
ราคา | 0.00 บาท |
สถานะสินค้า | พร้อมส่ง |
ลงสินค้า | 21 ก.ค. 2565 |
อัพเดทล่าสุด | 26 ก.ค. 2565 |
คงเหลือ | ไม่จำกัด |
จำนวน | ชิ้น |

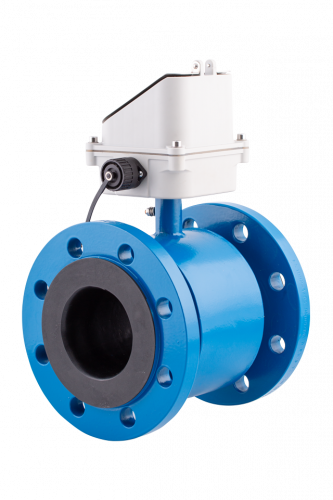

MAGE1 is an economic flowmeter with a carbon steel sensor and plastic transmitter that satisfies standard customer requirements. It is mains powered flowmeter (9-35 VDC) with 4-20 mA output, RS485 communication, and an internal data logger.
Accuracy | ±0,5% (0,5-10 m/s) of actual value |
Power supply | 9-35 VDC |
Communication | Modbus RTU |
Flow direction | Bi-directional measurement |
Ambient temperature | -20 to 60°C |
Display | LCD 128 x 64 px graphical, sleep mode |
Control | 3 touch buttons |
Housing material | Glass filled polyamide |
Connector | CA 6 GS Connector |
Electronics protection | IP67 |
Low flow cut-off | 2% of the full scale |
Other features | Test of excitation coils Empty pipe detection Earthing through 3rd and 4th electrodes |
4-20 mA output | Max. current 24 mA |
Digital communication | RS485 communication bus +I/O |
Data-logger | Flash memory 131072 records 15 seconds minimal record interval Saves date, time, and total volume |
Cable length | 3 m as standard, other on request |
Connection types | DIN, ANSI, other types on request |
Flange | Steel 1.0036 or higher |
Nominal size | 25-250 mm, other sizes on request |
Ambient temperature | -20 to 60°C |
Sensor protection | IP67 |
Liner | Hard Rubber, Hygienic Rubber, PTFE, other material on request |
Electrodes | Hastelloy as standard, other materials on request |
Measuring tube | Stainless steel 1.4301 |
Outer casing | Carbon steel (1.0036) as standard |
External coating | Lacquered finish (anticorrosive) |
Accessories options | Earthing rings for plastic and lined pipes |
Coils resistance | 100 Ω |
Other features | Earthing through 3rd and 4th electrodes |
