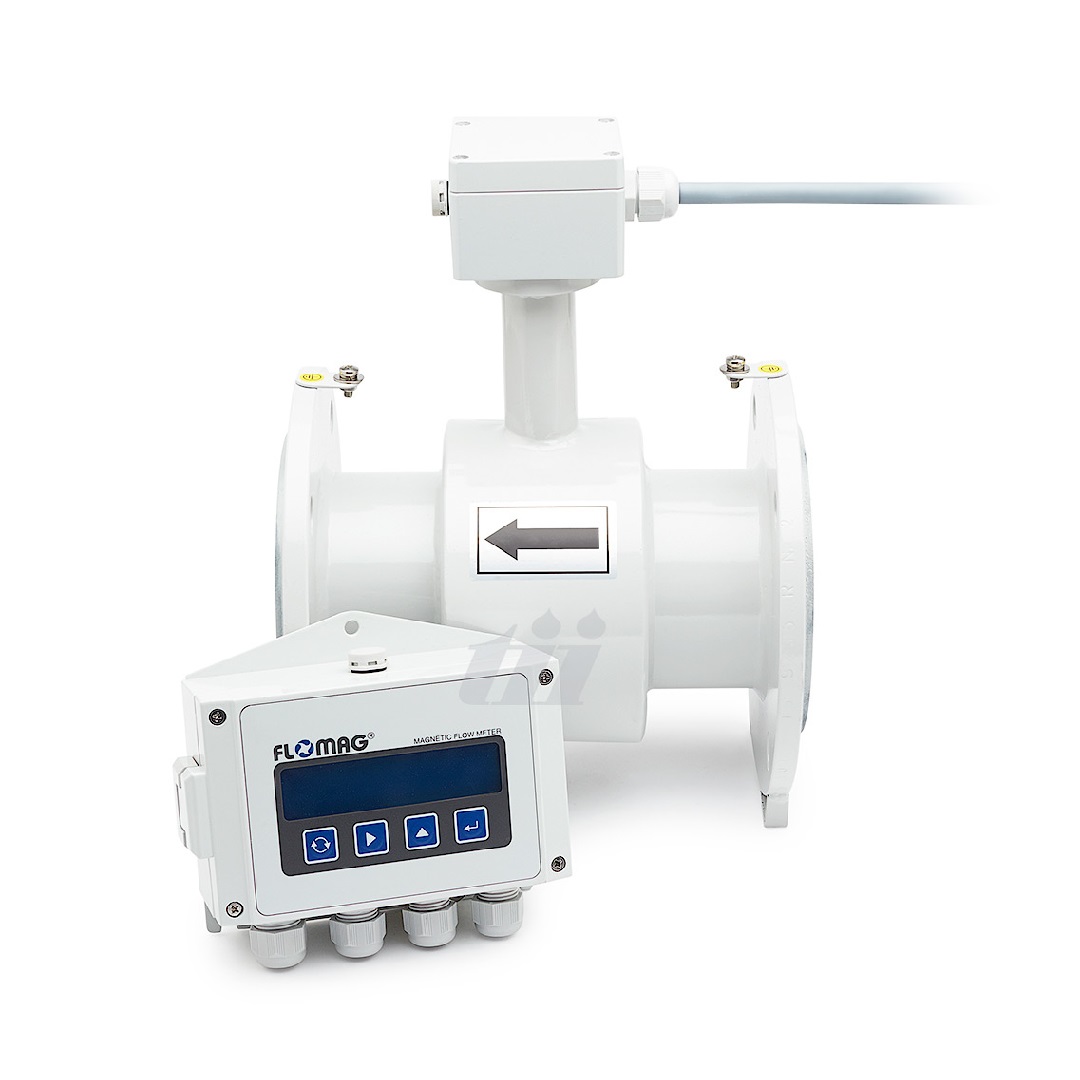

Magnetic flowmeter FLOMAG 3000 is a volume flow rate meter for conductive fluids in pipelines. It allows measurement of flow rates in both directions, with high accuracy and in wide range of flow rate
Technical parameters
Power supply |
85..240VAC, 10..36VDC, 24VAC |
Consumption |
5..8VA |
Analogue output |
optional - A5 - 0(4)..20mA (16bit) - active, A6- 4..20mA (16bit) - active, A7 - 4..20mA (16bit) - passive, all galvanically isolated. Modules A6 and A7 are HART compatible (with module H1) |
Binary output |
optional - B1 - 0..1kHz passive, B2 - 0..10kHz passive, B3 - 0..12kHz active (5 V),B3 - 0..12kHz active (24 V), B5 - relay - all galvanically isolated |
Interface |
optional - C1- RS232, D1 - RS485 (MODBUS), D2 - 0/20mA loop, D3 - M-Bus, G1 - GSM modem, H1 - HART modem (only with module A6 or A7), P1 - PROFIBUS-DP - all galvanically isolated |
Display |
optional - V1 - LCD and keyboard module – 2x16 characters (9,6 mm height) |
Electrode cleaning and pipeline full indication |
optional - F1 - electrochemical electrode cleaning module, F2 - pipeline full indication module, F3 = F1+F2 |
Protection |
The Transmitters has IP67, sensor up to IP68. |
Min conductivity of the liquid |
20μS/cm (for some liquids from 5μS/cm ) |
