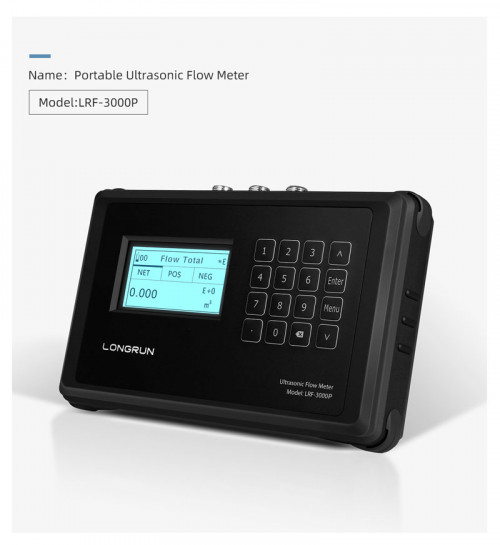

หมวดหมู่ | เครื่องวัดอัตราการไหลของของเหลว Ultrasonic Flowmeter |
ราคา | 0.00 บาท |
สถานะสินค้า | พร้อมส่ง |
ลงสินค้า | 27 ก.ค. 2565 |
อัพเดทล่าสุด | 27 ก.ค. 2565 |
คงเหลือ | ไม่จำกัด |
จำนวน | ชิ้น |
Performance specifications | |
Flow range | ±0.03ft/s~±40ft/s(±0.01m/s~±12m/s) |
Accuracy | ±1% |
Pipe size | 1"~ 48"25mm~1200mm) |
Fluid | Single medium liquid |
Pipe material | Carbon steel, stainless steel, PVC and other compact material pipe |
Function specifications | |
Outputs | Analog output:4~20mA,Max750Ω
Modbus:RS485
|
SD card | 16G |
Interval | 1~99999seconds |
Key broad | Digital keys |
Display | 240*128 back lit LCD |
Power supply | Rechargeable Lithium Battery Power,3000mAh(Continuous operation of main battery 16 hours). |
Temperature | Transmitter:-40℃~60℃
Transducer:-40℃~80℃ is standard;-40℃~1300℃ is an option
|
Humidity | Up to 99% RH,non-condensing |
Physical specifications | |
Transmitter | NEMA13,IP54 |
Transducer | Encapsulated design,IP68 |
Transducer cable | Standard cable length:5m(16ft) |
