รหัสสินค้า | SKU-00059 |
หมวดหมู่ | เครื่องวัดอัตราการไหลของของเหลว Electromagnetic Flowmeter |
ราคา | 0.00 บาท |
สถานะสินค้า | พร้อมส่ง |
ลงสินค้า | 29 ก.ค. 2565 |
อัพเดทล่าสุด | 29 ก.ค. 2565 |
คงเหลือ | ไม่จำกัด |
จำนวน | ชิ้น |

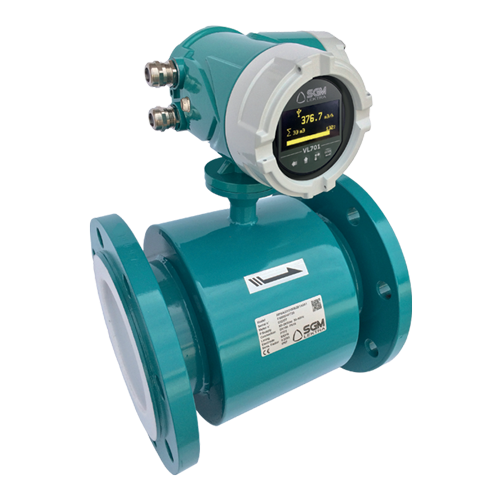

RPmagM with MID certification is suitable for all industrial processes where fiscal and custody transfer are required. It complies to 2014/32/EU directive and to OIML R 49-1/2/3, EN 14154-1/2/3, ISO 4064-1/2/5 standards. Various materials for lining are available, as well as electrodes made of Hastelloy C, tantalum and titanium. The converter can be supplied with most common communication systems such as MODBUS RTU.
Flow rate range |
RPmag is able to process signals from fluids with flow rates of up to 10m / s in both directions (bidirectional meter). |
---|---|
Range dimension / lining material |
PTFE DN10 ÷ DN250 |
Sensor material |
SS321 |
Housing material |
epoxy painted aluminium |
Electrodes material |
SS316L – Hastelloy C – Titanium – Tantalum – Platinum |
Measure range |
R=Q3/Q1 ≤40; Q2/Q1=1,6 |
Accuracy |
Class II |
Repeatability |
±0,1% |
Fluid conductivity |
>5μS/cm. |
Power supply |
85÷265Vac, 24Vac/dc, 12Vdc. |
Consumption |
6W, max. 8W. |
Temperature class |
T50 |
Ambient Temperature Limits |
Remote version operating temperature: RUBBER -10 ÷ +80°C; PTFE -40 ÷ +150°C |
Communication protocol |
Modbus |
Output |
4÷20mA: 0÷500Ω |
Reverse Flow |
Allows measure and totalization of reverse flow. |
Output Testing |
Relays output: Transmitter can switch relays at testing value. |
Humidity Limits |
0-100% RH to 150 °F (65 °C), not condensing. |
Damping |
Adjustable between 1 and 99 seconds. |
Compact version IP rating |
IP67 |
Remote version IP rating |
sensor IP67 / IP68 (by request) |
Anti-condensation filter |
Anti-condensation filter installed on converter |
