Advantages at a glance:
Specially designed for air and nitrogen mass flow measurements
Low cost , economical model, ideal for mass installation.
Inline installing, can be installed/removed without stopping the line
Compact design, easy to insertion mounting under high pressure
Minimum flow rate down to 0.3m/s, 1:100 super wide turndown ratio
No moving part, almost no pressure loss
Direct mass flow measurement, do not require temperature or pressure compensation
Isolated design for electrical parts to eliminate interference
Optimized power efficiency design, supper low power consumption down to 60mA@24VDC
2 lines LCD display with unit displaying
Standard output is pulse and RS485, Hart@4~20mA and 4~20mA is available
Metric/British Unit selectable
Password protecting function and self-diagnose function with connected user’s phone via Bluetooth
TGF450 inline thermal mass flowmeter application compressed air monitoring & control system

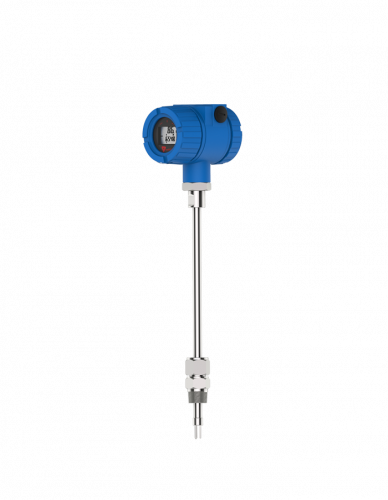

TGF450- | Insertion type | In-line type | ||
Media Compatibility | Air, Nitrogen,O2,CO2,Argon,CH4, Natural gas, biogas, and almost all dry and clean air | |||
Pipe diameter | DN25~6000mm | DN15~300mm | ||
Flow velocity range | 0.3~30Nm/s or 0.6~60Nm/s or 0.9~90Nm/s or 1.2~120Nm/s | |||
Accuracy | 0.5% RD+ ±1.5% FS | |||
Temperature of medium | -40~+150°c | |||
Pressure of medium | 1.6MPa | 4.0Mpa | ||
Power supply | AC85~265V or DC13.5~42V | |||
Response time | 1 second | |||
Output | Frequency + pulse + 4~20Ma as standard | |||
Communication | RS~485 as standard , 4~20mA@HART as optional | |||
Date displayed | Mass flow, Volume flow in normal condition | |||
Total flow , Temperature of medium. Velocity | ||||
Ingress protection grade | IP65 (GB China) |
